Power distribution, storage & custom enclosures
Products
Power distribution equipment, energy storage batteries, complete storage systems and custom cabinets and enclosures.

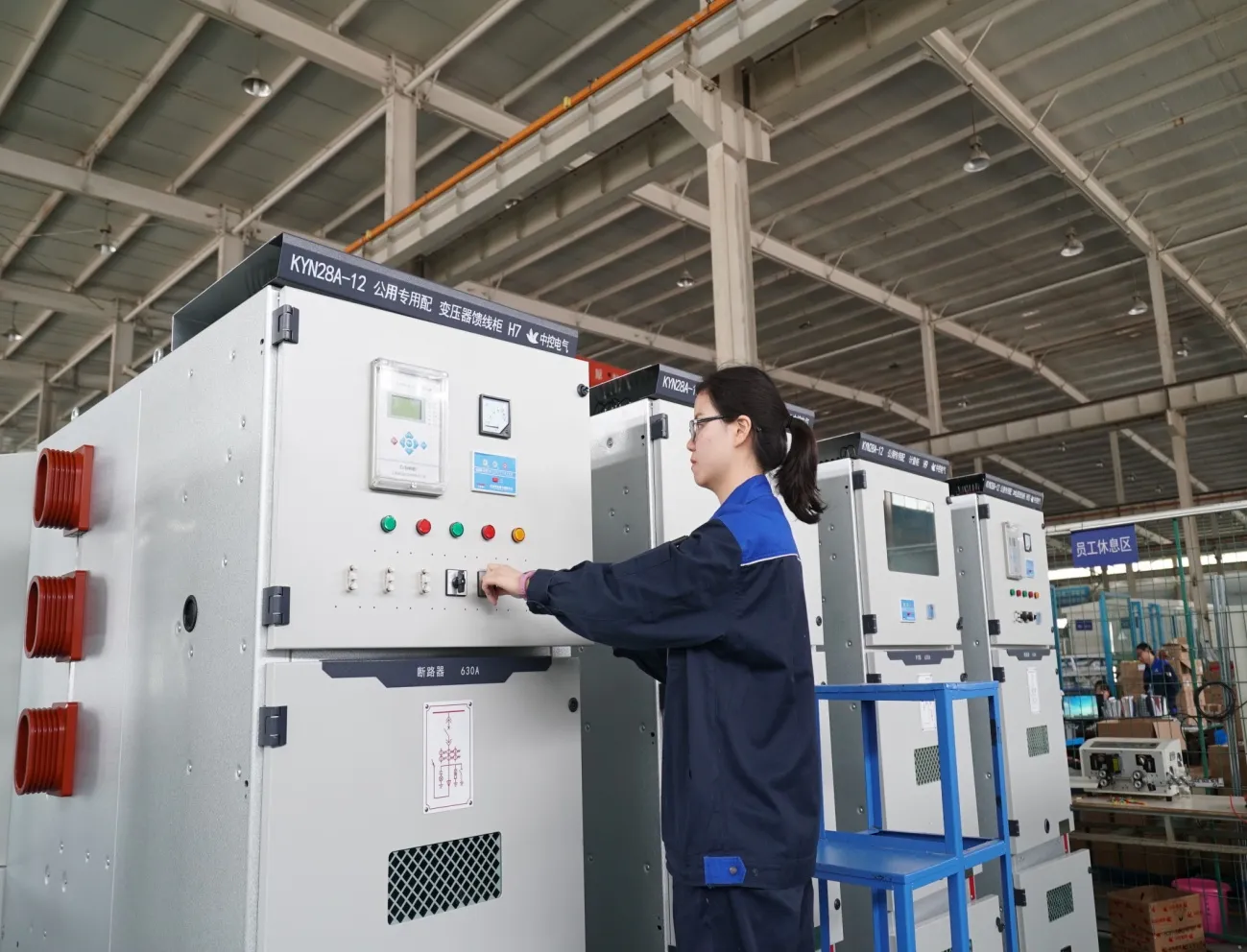

Power Distribution Equipment
High and low voltage switchgear, prefabricated substations and high voltage cabins configured for project electrical designs. Supply schedules distinguish enclosures, installed equipment and associated facilities.
- Switchgear and distribution cabinets: cabinet type, electrical configuration and installation interfaces.
- Prefabricated substations: coordinated high voltage, transformer and low voltage compartments.
- High voltage cabins: enclosure structures and site connections follow the equipment layout.
Energy Storage Batteries
Zhongkong offers energy storage battery products. Battery equipment and complete systems are described separately to clarify purchasing and equipment interfaces.
Selection considers voltage, energy capacity, dimensions and interfaces. Models and ratings are established from the technical information for the proposed product.
- Battery equipment
- Define voltage, capacity and equipment interfaces.
- Associated equipment
- Identify connections with power conversion and control equipment.
- Complete systems
- For system supply, define power, energy and the complete equipment list.
Battery models, applications and integration requirements follow the proposed product.
Storage Selection
Choose battery and storage cabinet configurations by energy requirement, voltage platform and installation conditions.
Check dimension order and installation orientation against equipment drawings.

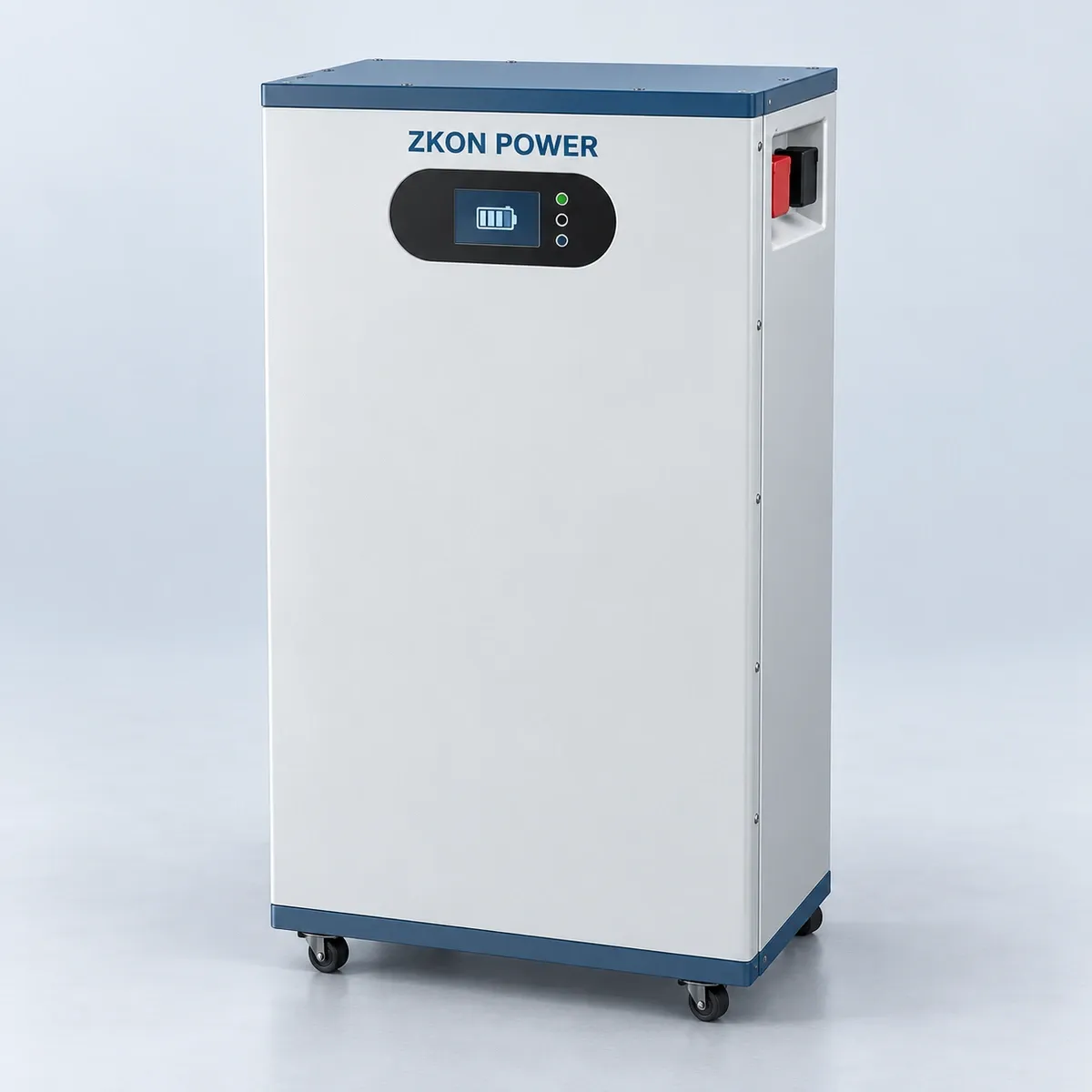

15 kWh Battery Selection
Battery selection around the required DC platform, with electrical matching, installation space and control interfaces to define.
View Details- Nominal voltage
- 48 V DC
- Nominal capacity
- 314 Ah
- Energy capacity
- 15 kWh
- Dimensions
- 440 × 260 × 741 mm
- Approx. weight
- ~112 kg
- Operating voltage
- 39–54 V DC

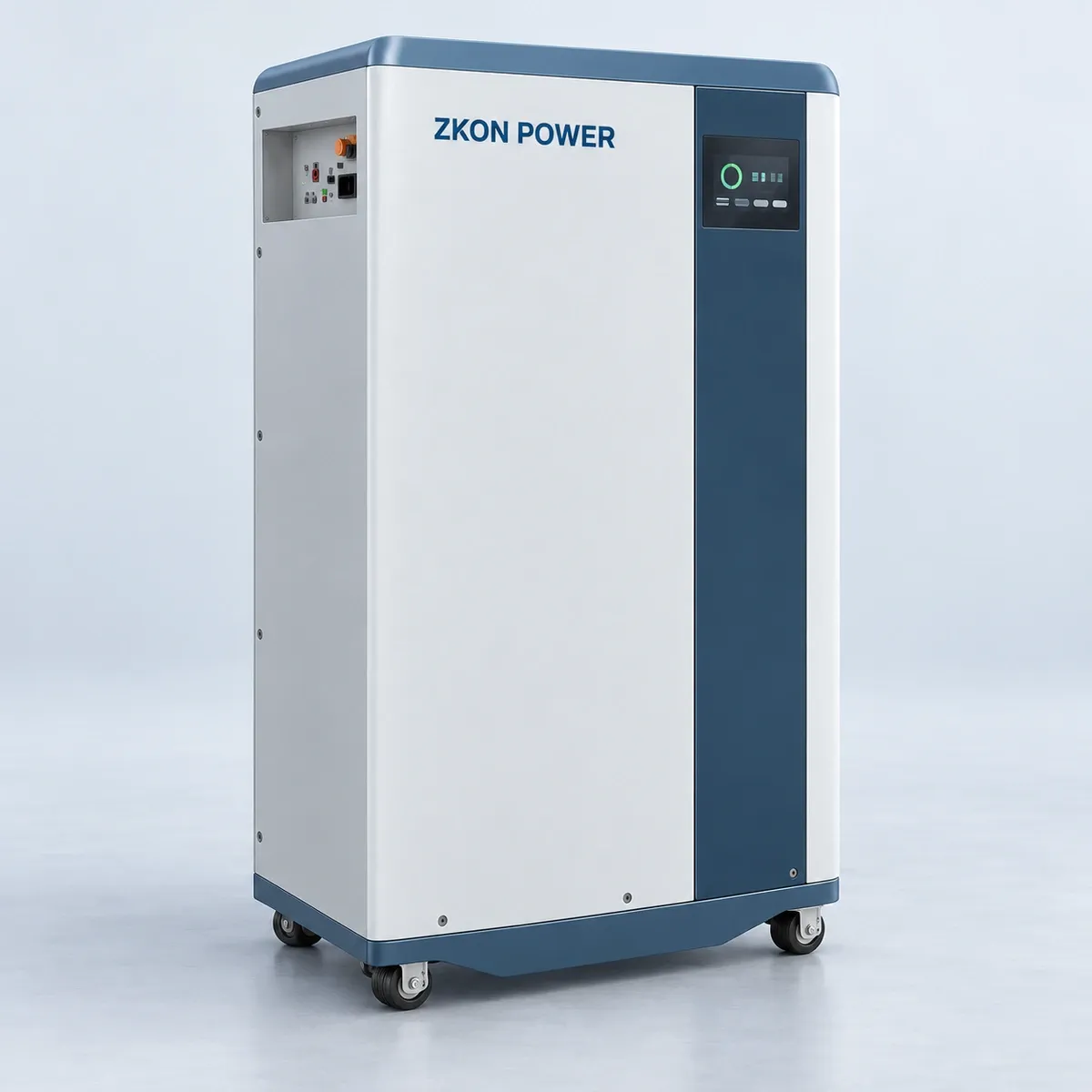

16 kWh Battery Selection
Battery selection around the required DC platform and capacity, with equipment interfaces and installation conditions to review.
View Details- Nominal voltage
- 51.2 V DC
- Nominal capacity
- 314 Ah
- Energy capacity
- 16 kWh
- Dimensions
- 890 × 416 × 237 mm
- Approx. weight
- ~115 kg
- Operating voltage
- 41.6–58.4 V DC

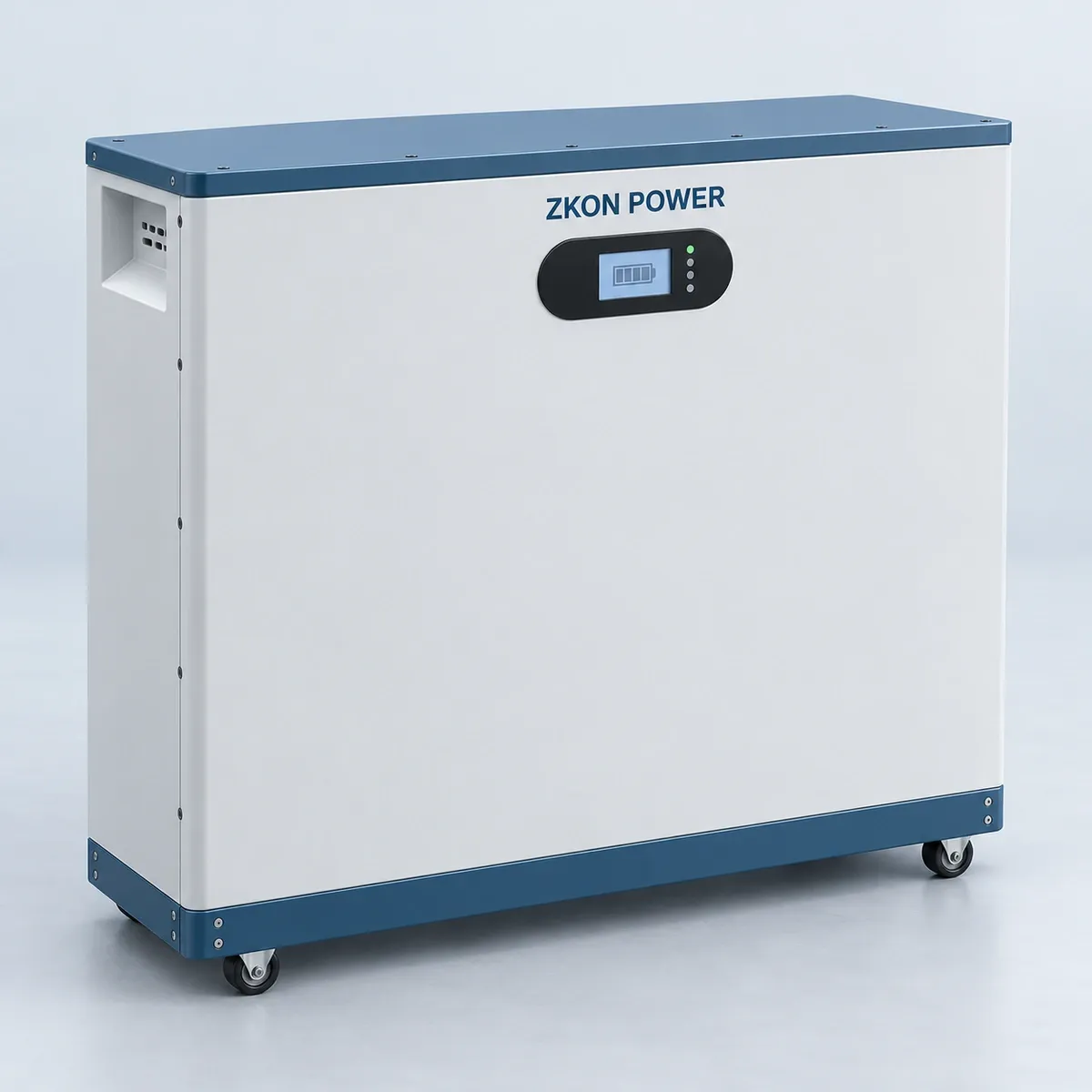

Wide-format Battery Selection
Wide-format battery selection based on installation space, load requirements and matching equipment.
View Details- Dimensions
- 944 × 809 × 285 mm
- Approx. weight
- ~265 kg

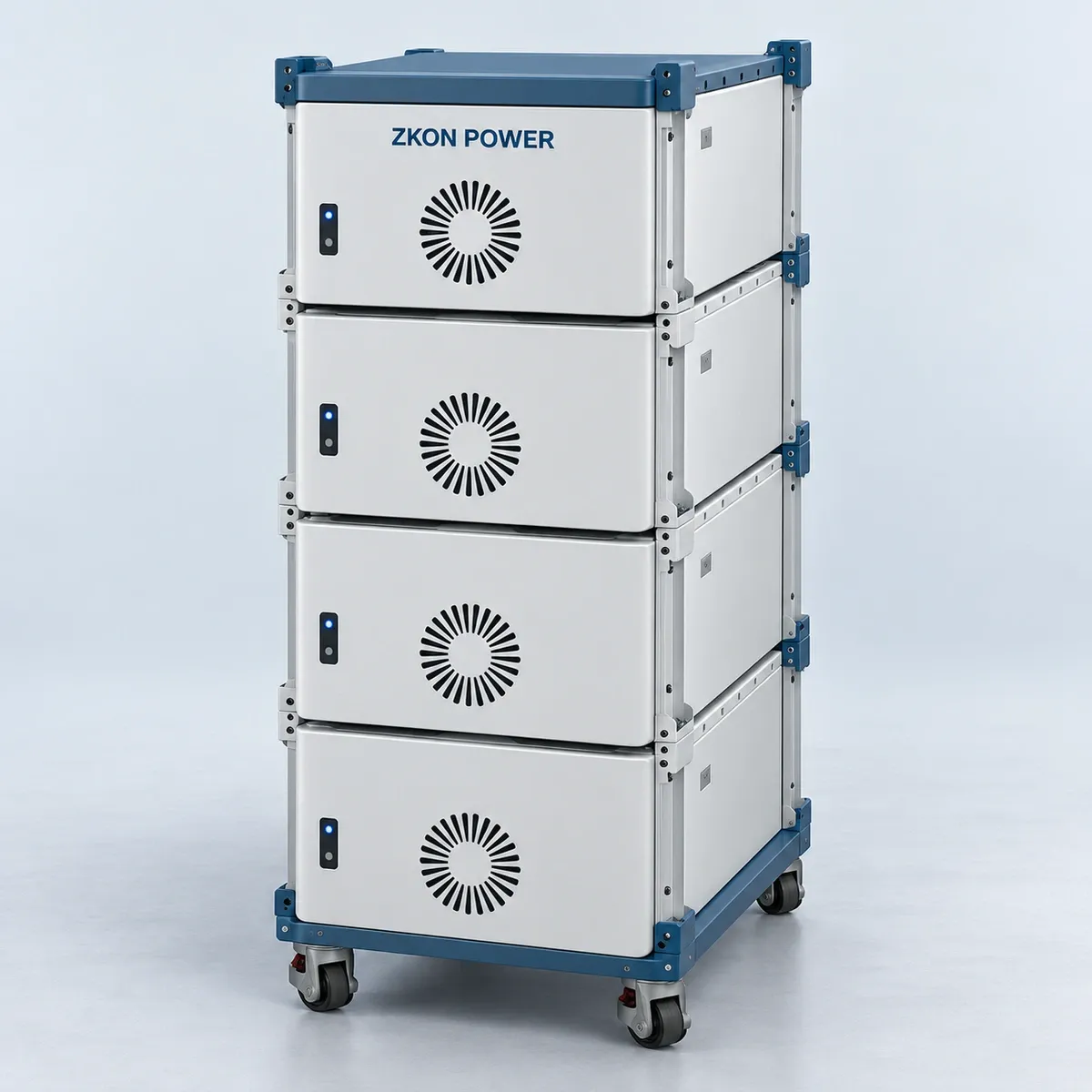

Modular Battery Selection
Modular battery selection based on module count, connections and installation requirements.
View Details- Dimensions
- 640 × 280 × 217 mm
- Approx. weight
- ~63 kg

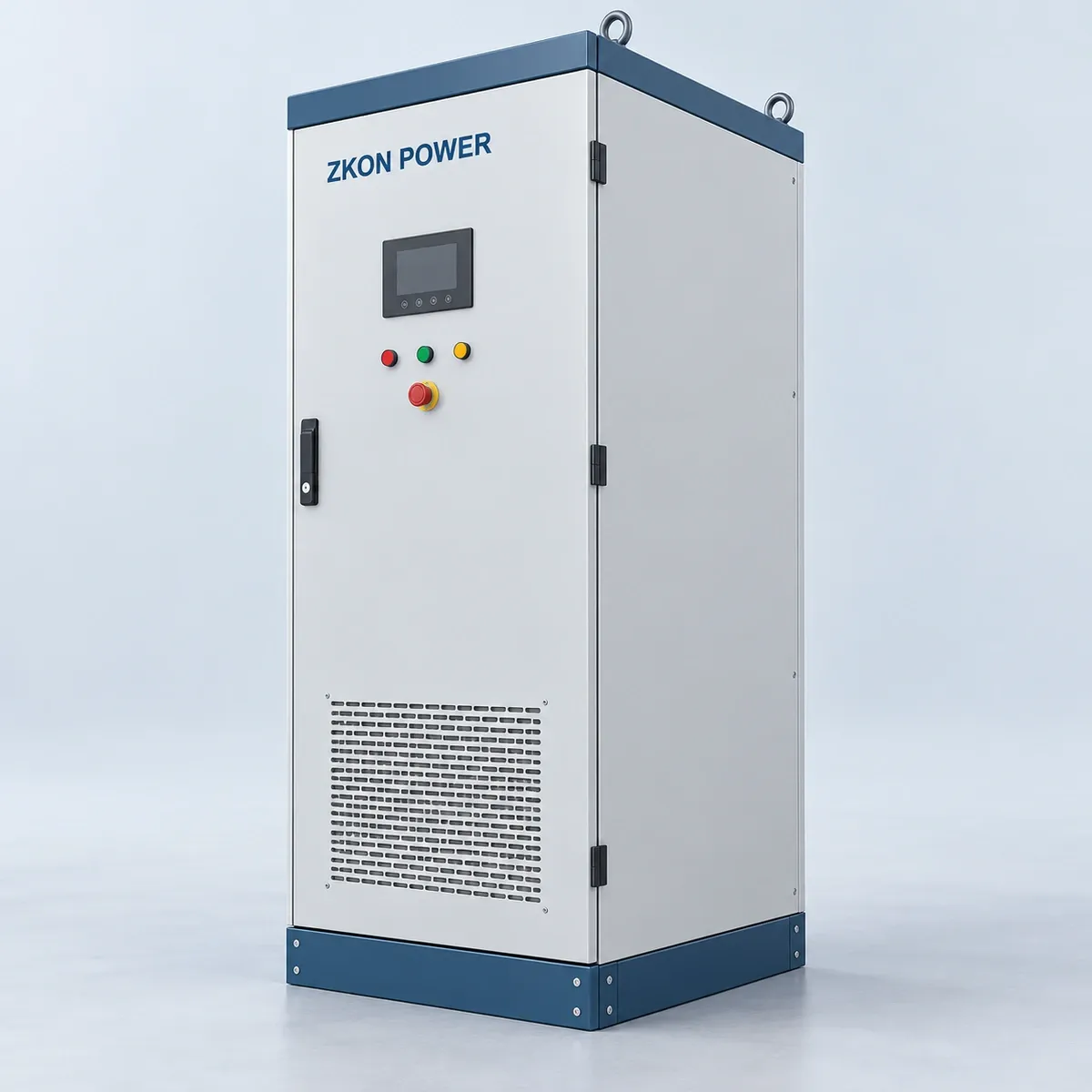

Storage Cabinet Selection
Storage cabinet selection with battery voltage, cabinet energy and site interfaces reviewed separately.
View Details- Nominal voltage
- 832 V DC
- Nominal capacity
- 314 Ah
- Energy capacity
- 261 kWh
- Dimensions
- 1000 × 1400 × 2500 mm
- Approx. weight
- ~2.8 t
- Operating voltage
- 702–936 V DC
Complete Energy Storage Systems
Zhongkong can supply complete energy storage systems. Battery, power conversion and control configurations follow project power, energy and site connection requirements.
Equipment configuration and supply scope are listed together. Installation, commissioning and aftersales responsibilities are agreed for the project. Wastewater treatment plant projects illustrate this application setting.
Custom Cabinets & Equipment Enclosures
The group cabinet manufacturer is an affiliated company within Zhongkong Group, providing custom cabinets and equipment enclosures. Structure, installation space, doors and interface openings can be discussed against project drawings.
- Substation enclosures
- Composite panel, metal, timber clad and decorative exterior designs can be discussed for the project.
- Equipment room enclosures
- Hui style and other exterior designs with internal space arranged for the equipment.
- Custom cabinets
- Cabinets, frames and sheet metal components manufactured to drawings with separately defined scopes.
Enclosure manufacture and installed electrical equipment have separately agreed scopes.
